Countersunk allen screw ISO 7379 M5 f9 6x10-12.9

Product detailed description

The flush-fitting screw with a cylindrical head and internal hexagon according to ISO 7379 is designed for applications requiring a precise fit and high strength. This screw is made of steel of strength class 12.9, which guarantees its high resistance to mechanical stress. The screw has no surface treatment, which is important to consider when using it in a corrosive environment.

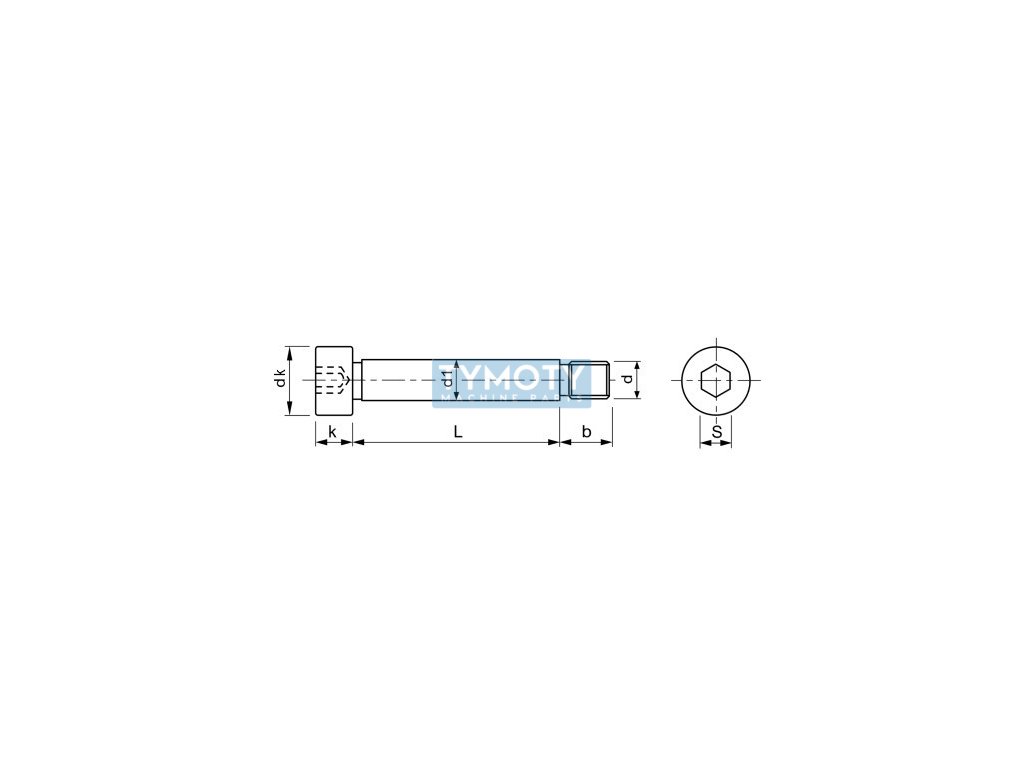

The thread diameter is M5 with a metric pitch of 1 mm, which is standard for this type of screw. The total length of the screw is 10 mm, while the thread length is 9.5 mm, which allows sufficient anchoring in the material. The seat diameter is 6 mm, which corresponds to a precision fit f9, which ensures minimal backlash and high assembly accuracy.

The cylindrical head of the screw has a diameter of 10.22 mm and a height of 4.5 mm, which provides sufficient contact area for force transmission. The 3 mm internal hexagon allows for efficient torque transmission during assembly and disassembly, while ensuring reliable tool retention.

This screw is ideal for use in mechanical engineering and construction where high strength and precision of joints are required. It is suitable for applications where precise positioning and minimal clearance between the parts being joined are important.
