Countersunk allen screw ISO 7379 M10 f9 12x45-12.9

Product detailed description

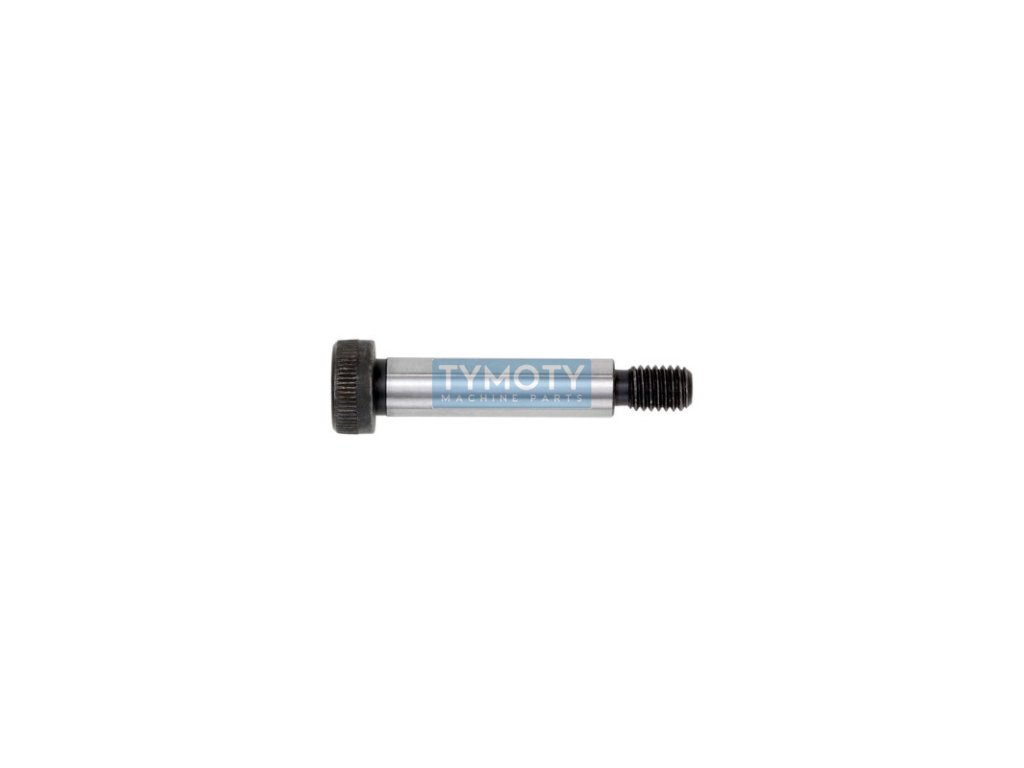

The ISO 7379 socket head cap screw is a precision machined component designed for applications where high precision and connection strength are required. This screw has a metric M10 thread with a diameter of 10 mm and an overall length of 45 mm. The seat diameter is 12 mm, which corresponds to a tolerance of f9, allowing for a precise fit in the hole.

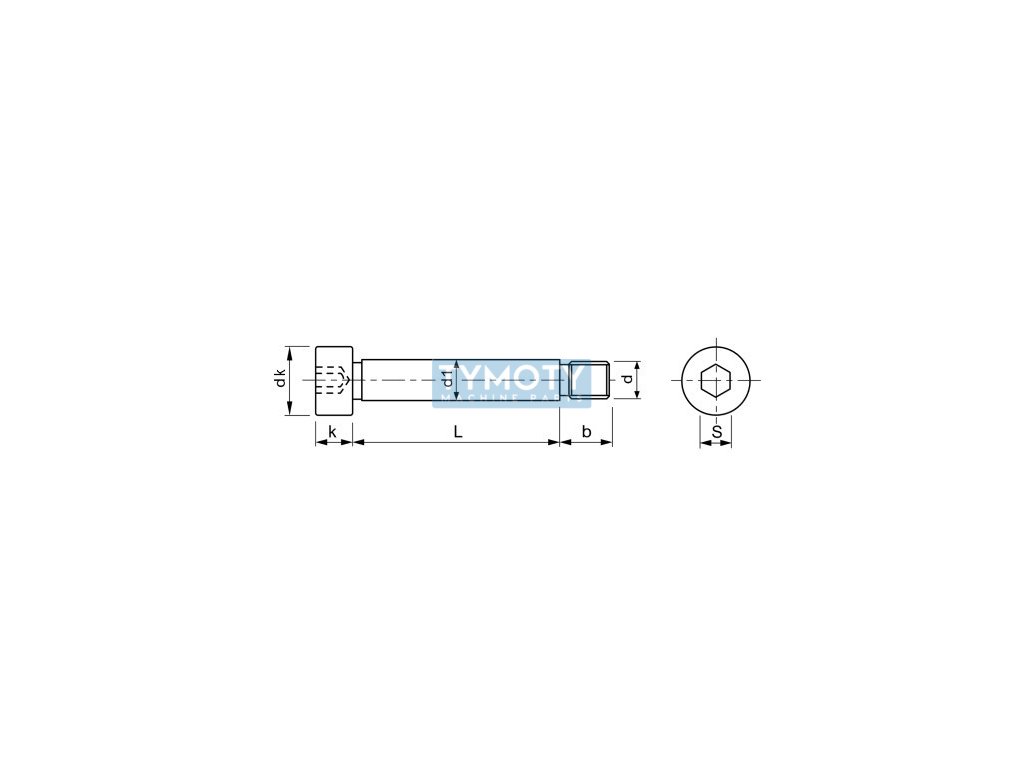

The screw's socket head has a diameter of 18.27 mm and a height of 9 mm, while the 6 mm internal hexagon allows the use of an Allen key for assembly and disassembly. The thread length is 16 mm with a metric pitch of 2 mm, which ensures a reliable fit in the threaded hole.

The screw is made of 12.9 strength steel, which means it has a very high tensile strength and is suitable for demanding mechanical applications. This grade of steel is able to withstand high loads and dynamic forces. The surface of the screw is untreated, which is suitable for applications where additional corrosion protection is not required.

This screw is ideal for use in engineering and construction, where it is necessary to ensure a precise and strong connection of components, such as in the assembly of machines, equipment or structural units. Its precise dimensions and high strength make it a reliable element for critical applications.
