Countersunk Allen screw DIN 7991 M5x14 stainless steel A2

Product detailed description

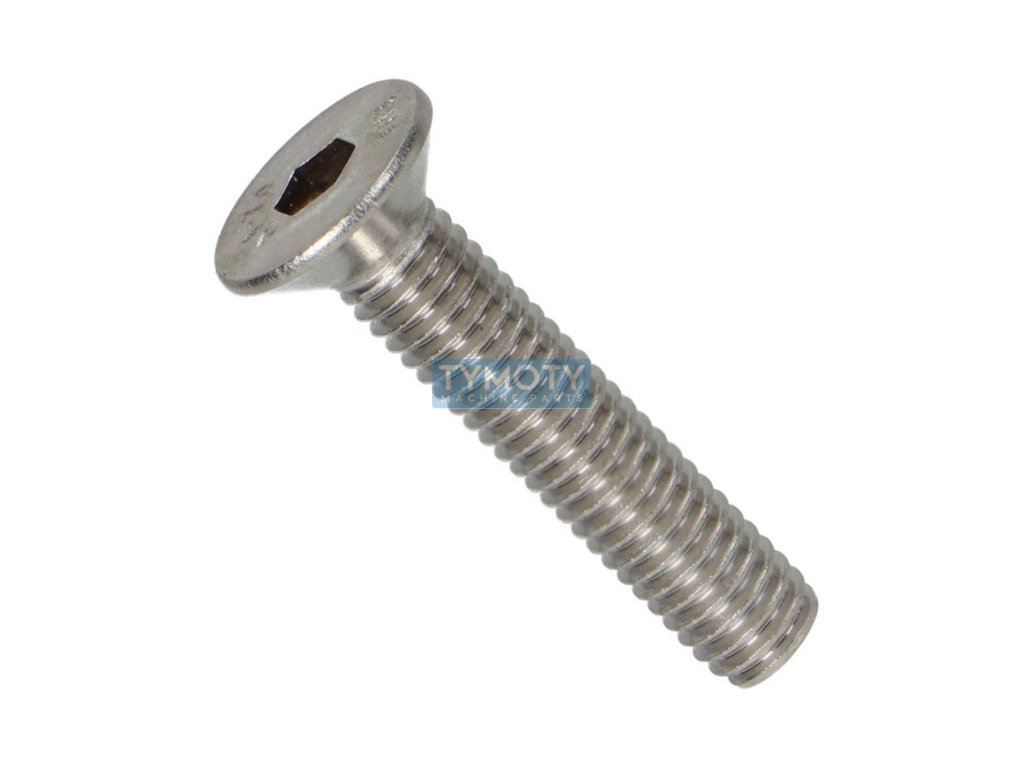

The DIN 7991 M5x14 Allen screw is made of A2 grade stainless steel. This screw is designed for applications where a flat joint surface is required, which is achieved thanks to the 90 degree countersunk head. The 3 mm internal hexagon allows the use of an Allen key for reliable and firm tightening.

The screw has a metric thread with a diameter of 5 mm and a pitch of 0.80 mm, while the total length of the screw is 14 mm. The head height is 2.3 mm and the head diameter (dk) is 10 mm, which ensures optimal force distribution during assembly. The cone height (k) is 3.2 mm, which contributes to aesthetic and functional embedding in the material.

The A2 stainless steel material provides good corrosion resistance, which is suitable for use in environments with higher humidity or outdoors. The screw has no additional surface treatment, which is typical of stainless steel materials, which already provide sufficient protection on their own.

This screw is ideal for metal and structural applications where it is necessary to ensure a strong and reliable connection with an aesthetic appearance. It is compatible with ISO 10642 and ČSN 021144 standards, which guarantees its wide use in various industrial sectors.
