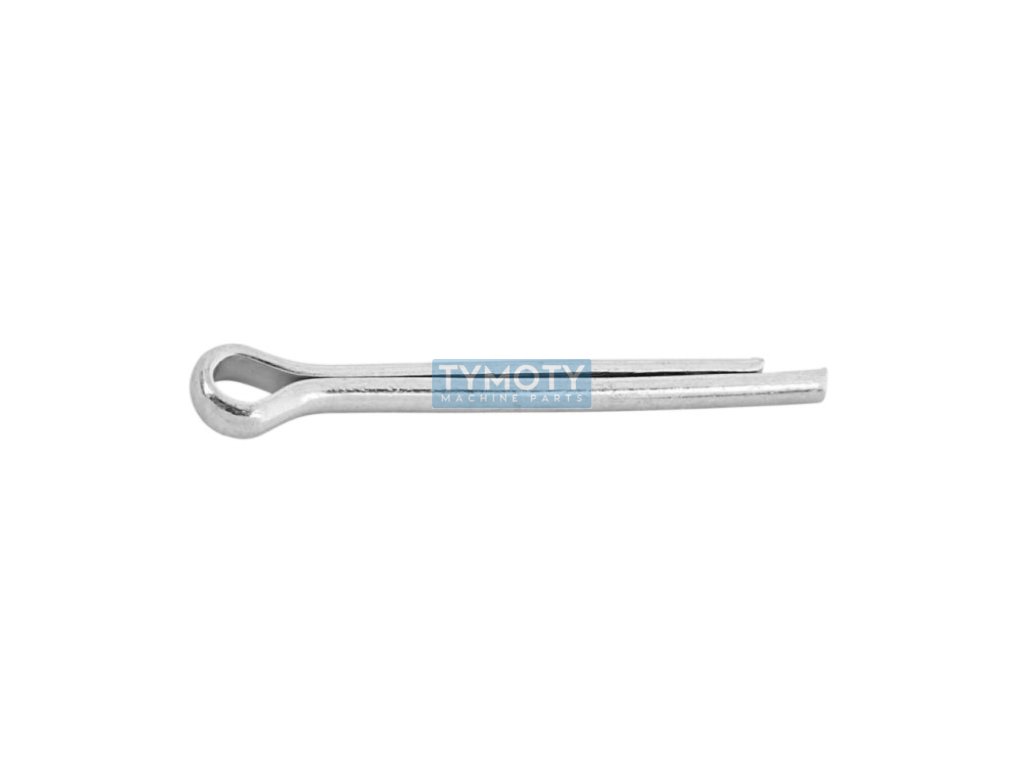

Cotter pin DIN 94-8x90 stainless steel A4

Product detailed description

The split pin according to DIN 94 and ISO 1234 is made of A4 stainless steel, which is known for its high corrosion resistance, which makes it suitable for use in harsh environments, including marine applications. This component has a diameter of 7.5 mm and an overall length of 90 mm, which corresponds to the standard dimensions for this type of fastener.

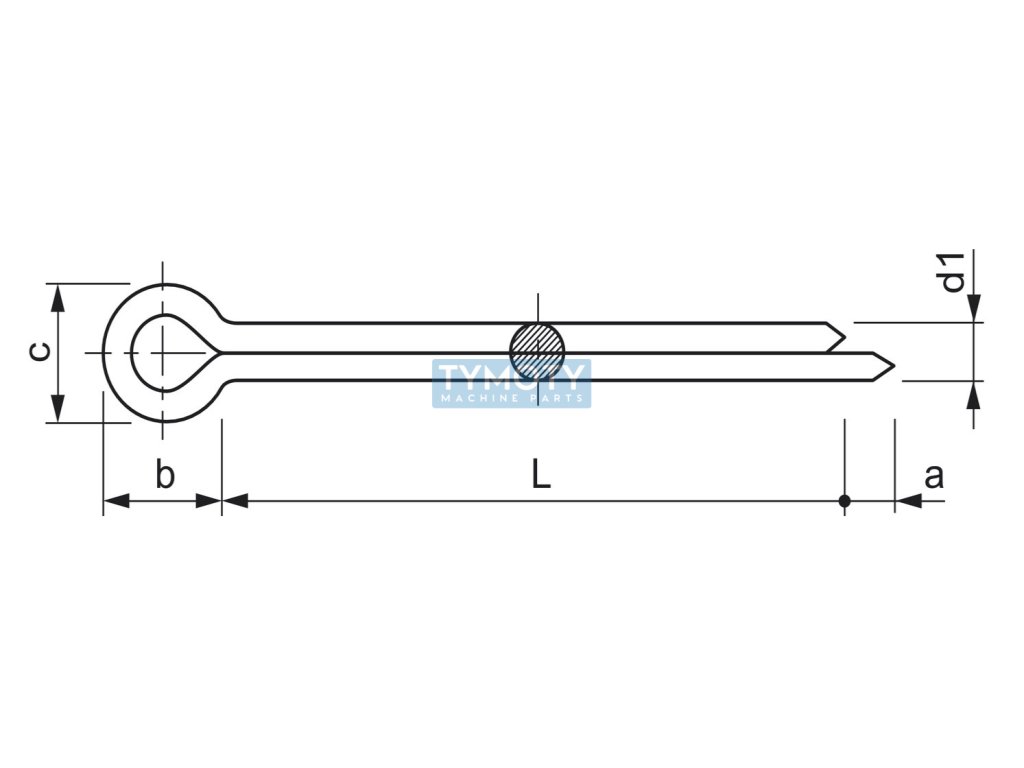

The width of the split pin is 15 mm, with width b being 16 mm and width a being 4 mm. These dimensions are designed to ensure optimal functionality and reliability when used in various mechanical assemblies. The split pin has no additional surface treatment, which is common for stainless steel materials that naturally resist corrosion.

The ČSN 21781 standard, which is equivalent to DIN 94 and ISO 1234, ensures that this component meets all requirements for quality and manufacturing precision. Cotter pins of this type are commonly used to secure the position of pins, axles or other rotating components, while their easy installation and removal allows for quick and efficient maintenance work. Due to its properties, this cotter pin is ideal for applications where high reliability and resistance to external influences are required.
