Cotter pin DIN 94-5x63 stainless steel A2

Product detailed description

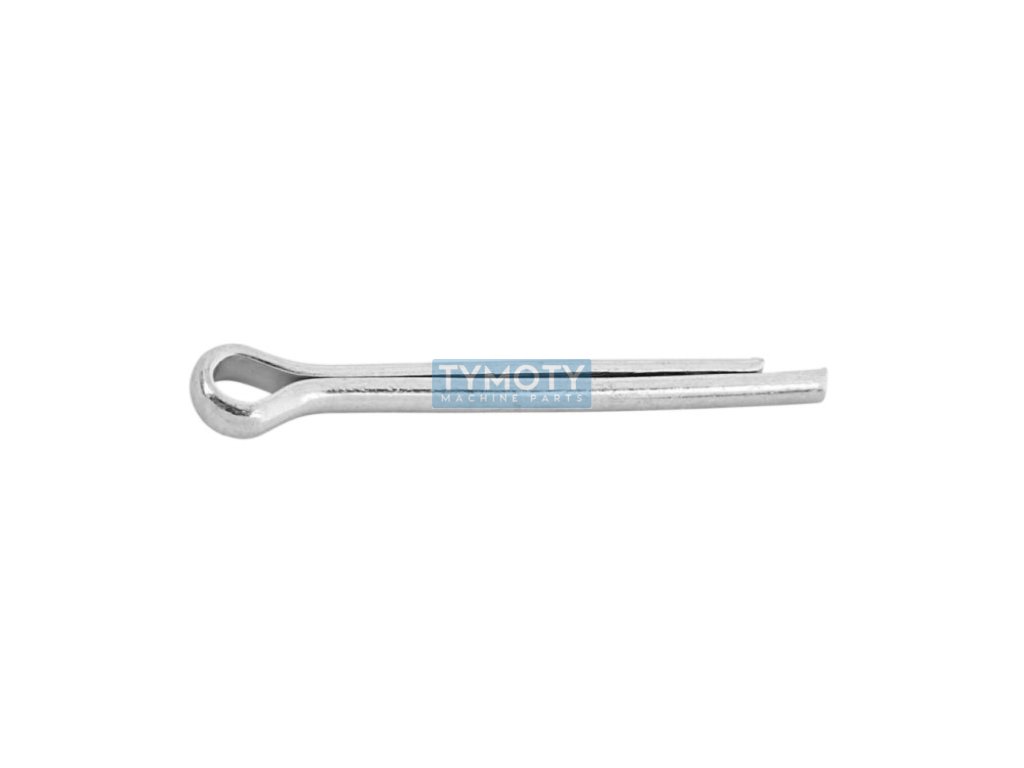

The DIN 94-5x63 split pin made of A2 stainless steel is a mechanical fastener used to secure the position of other components, such as nuts or pins, in mechanical assemblies. This type of split pin is manufactured in accordance with DIN 94 and ISO 1234, ensuring compatibility and standardized dimensions for a wide range of applications.

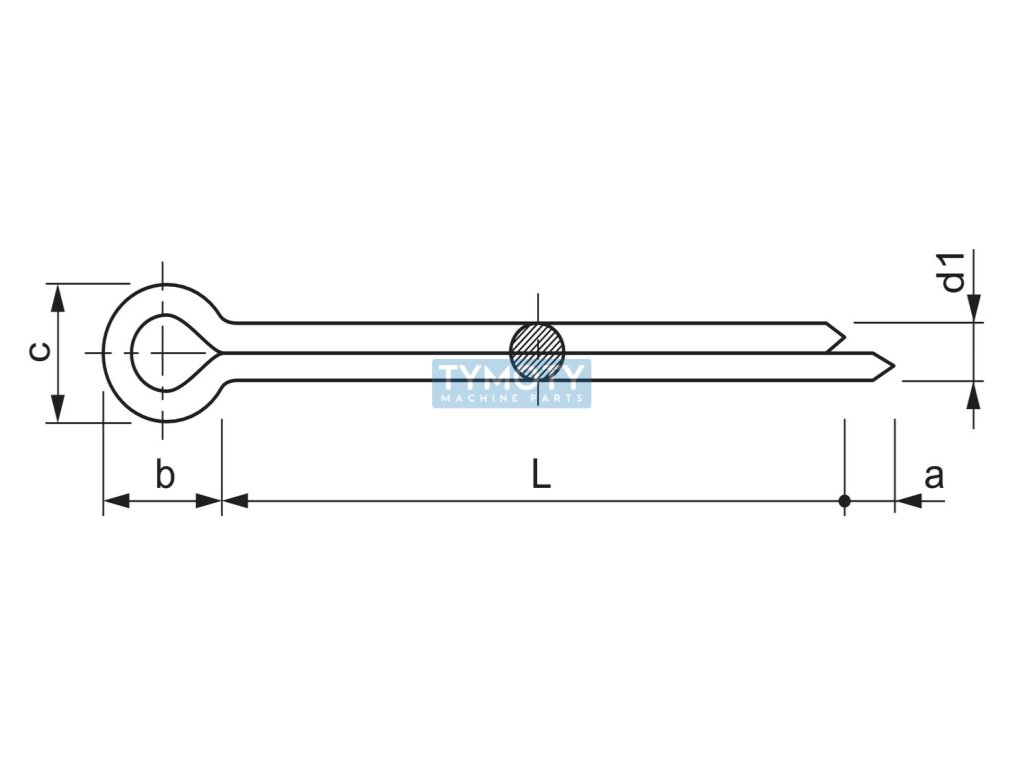

The split pin has a diameter of 4.6 mm and a length of 63 mm, making it suitable for applications where components of similar dimensions need to be secured. The width of the split pin is 9.2 mm, with the width b being 10 mm and the width a being 4 mm. These dimensions are critical for proper insertion and locking in the hole or groove, ensuring a reliable fastening.

The material used to manufacture this split pin is grade A2 stainless steel, also known as 1.4300. This material provides excellent corrosion resistance, which is especially important in environments with high humidity or in the presence of chemicals. The surface finish of the split pin is without additional treatments, which means that it is left in the natural state of stainless steel, thus preserving its natural properties.

Split pins of this type are part of a group of fasteners known as expansion pins or self-locking elements. Their main function is to prevent spontaneous loosening of joints, thereby increasing the safety and reliability of mechanical assemblies. Due to their properties, they are ideal for use in various industrial sectors, including mechanical engineering, the automotive industry and construction.
