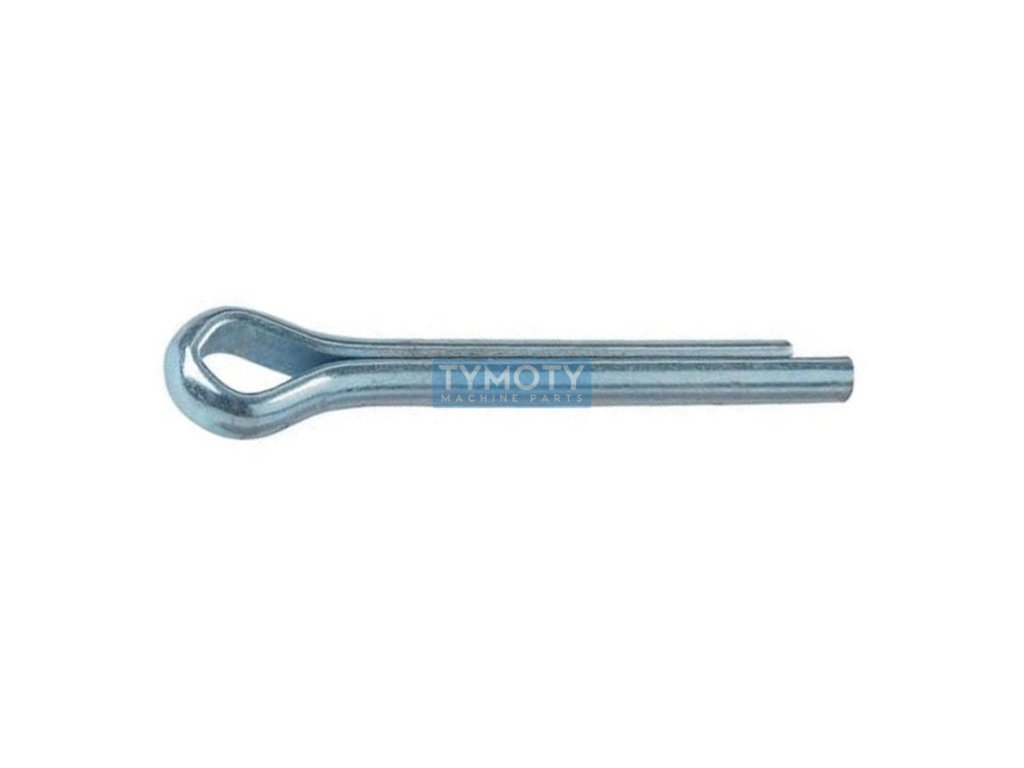

Cotter pin DIN 94-4x22 galvanized
Code: 863316
Product detailed description
The split pin according to DIN 94 and ISO 1234 is made of galvanized steel, which guarantees its high corrosion resistance and long service life even in demanding conditions. This component has a diameter of 3.7 mm and a length of 22 mm, while the width at the bend point is 8 mm. The width of the split pin arms is 4 mm and the total width at the opening point reaches 7.4 mm.The split pin is designed to secure nuts, bolts and various connections against unwanted loosening. Its design allows for easy assembly and disassembly, which is advantageous during maintenance and repair of machines and equipment. The white zinc coating increases its resistance to external influences and reduces the risk of oxidation.
This split pin is ideal for applications where it is necessary to ensure a reliable and reusable connection. It is suitable for use in various industrial sectors, including mechanical engineering, the automotive industry and construction. The cotter pin meets the ČSN 21781 standards, which guarantees its compatibility with other components according to international standards.
Additional parameters
| Category: | Fasteners > pins > DIN 94 graded steel |
|---|---|
| Weight: | 0.003 kg |
| EAN: | 4043952028179 |
| CSN standard: | 21781 |
| Diameter d1 (mm): | 3,7 |
| DIN standard: | 94 |
| ISO standard: | 1234 |
| Length L (mm): | 22 |
| Material: | steel |
| Surface finish: | zinc white |
| Width A (mm): | 4 |
| Width B (mm): | 8 |
| Width C (mm): | 7,4 |
