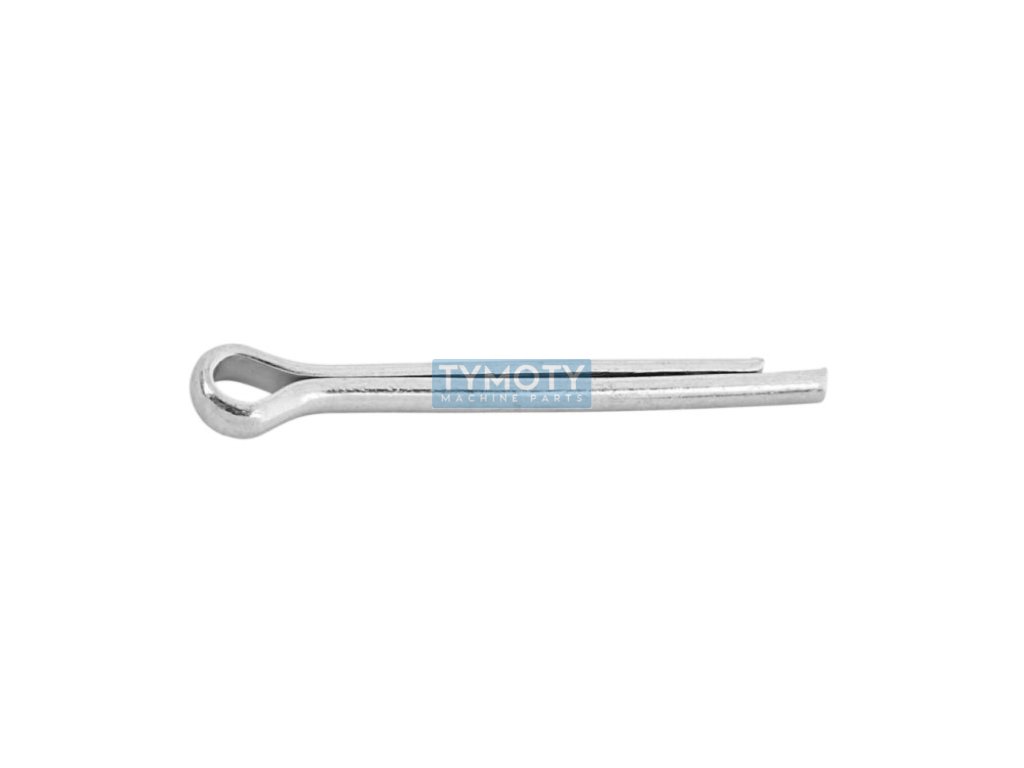

Cotter pin DIN 94-3.2x40 stainless steel A2

Product detailed description

The DIN 94-3.2x40 split pin made of A2 stainless steel is a structural element designed to secure joints and mechanical assemblies against spontaneous loosening. This component falls under the DIN 94 and ISO 1234 standards, which guarantees its compatibility and standardized dimensions for a wide range of applications.

The split pin has a diameter d1 of 2.9 mm and a total length L of 40 mm. The width at the bend point is 5.8 mm, while the width a is 3.2 mm and the width b is 6.4 mm. These dimensions are optimized for effective attachment and securing of mechanical joints.

The material is A2 grade stainless steel, which is known for its resistance to corrosion and chemical influences, which allows it to be used in demanding environments, including outdoor applications and humid conditions. The surface treatment is not applied, which is common for stainless steel components, as the material itself provides sufficient protection against corrosion.

Cotter pins of this type are often used in conjunction with pins or screws, where they serve as a locking element. Their design allows for easy assembly and disassembly, while providing reliable protection against axial movement. Due to their properties, they are ideal for applications in mechanical engineering, the automotive industry and other areas where a reliable and durable connection is required.
