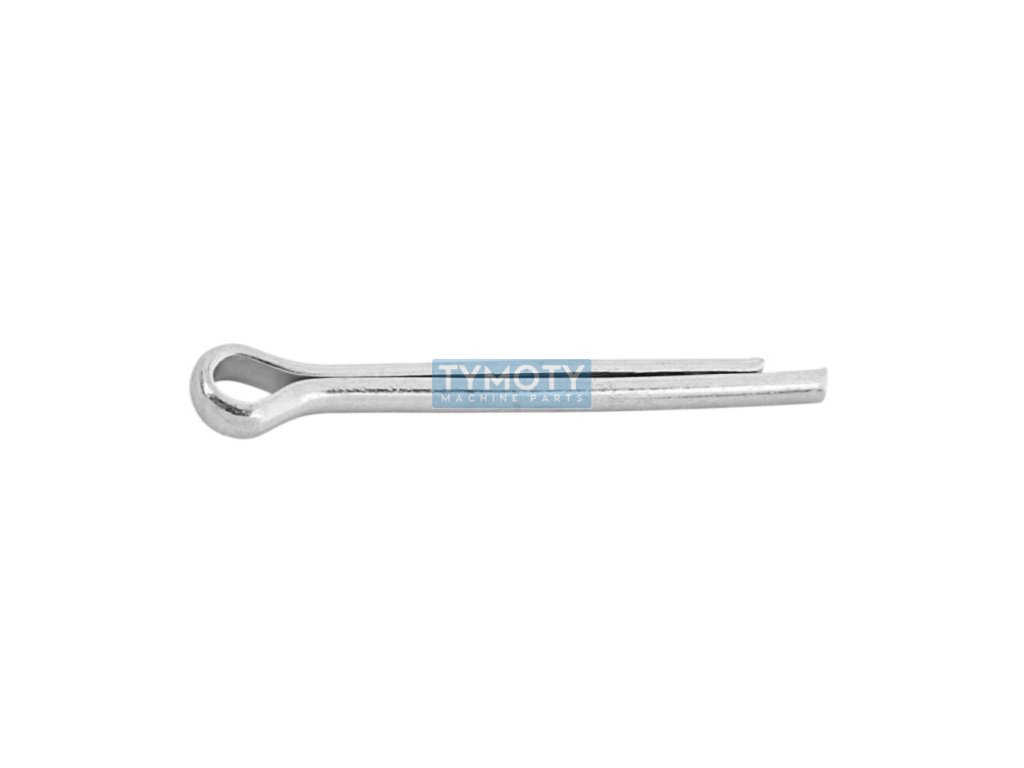

Cotter pin DIN 94-2x16 stainless steel A2
Code: 898628
Product detailed description

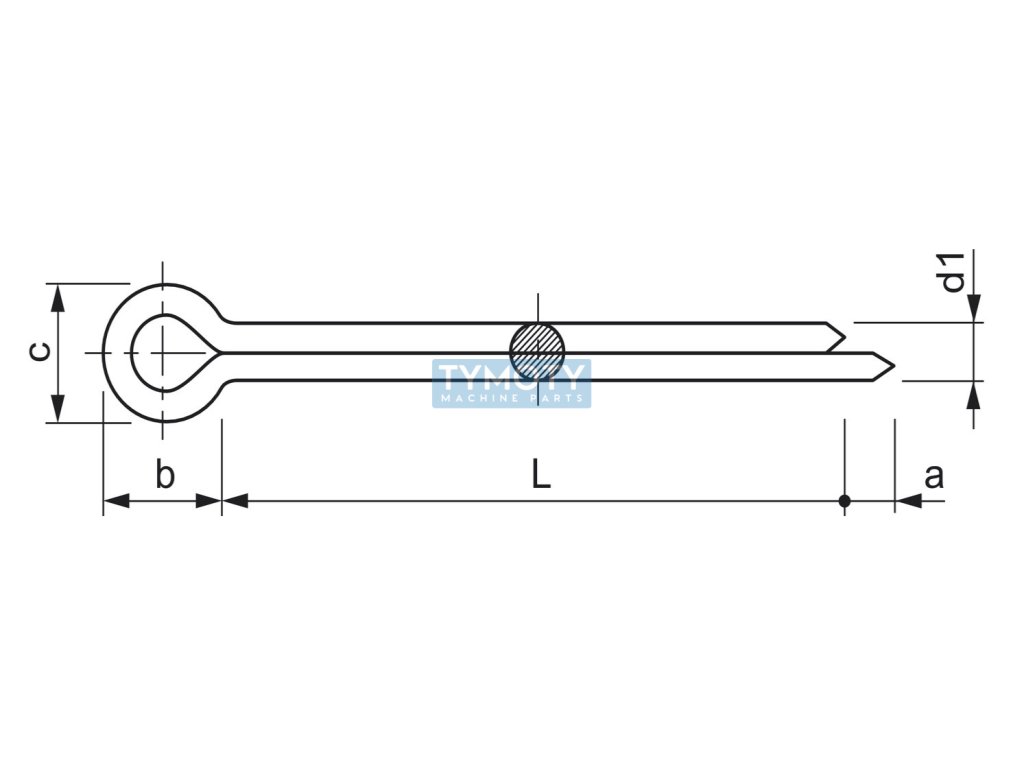

The stainless steel split pin according to DIN 94 and ISO 1234 is made of A2 grade stainless steel, which is known for its resistance to corrosion and suitability for use in environments with high humidity or chemical exposure. This split pin has a diameter d1 of 1.8 mm and a length L of 16 mm, which makes it suitable for applications where reliable fixation of components is required. The width C is 3.6 mm, the width b is 4 mm and the width a is 2.5 mm, which guarantees a precise and firm fit.The split pin is designed as a self-locking element, which means that after installation it remains securely in place without the need for additional fasteners. Its design allows for easy assembly and disassembly, which is advantageous when maintaining or replacing components. The surface treatment is not applied, which is typical of stainless steel materials that naturally resist corrosion.
This cotter pin is ideal for use in mechanical engineering, the automotive industry and other technical areas where high reliability and resistance to external influences are required. DIN 94, ISO 1234 and ČSN 21781 standards guarantee that the product meets international standards of quality and precision.
Additional parameters
| Category: | Fasteners > pins > DIN 94 stainless steel A2 |
|---|---|
| Weight: | 0.001 kg |
| EAN: | 4043952029213 |
| CSN standard: | 21781 |
| Diameter d1 (mm): | 1,8 |
| DIN standard: | 94 |
| Fortress class: | A2 |
| ISO standard: | 1234 |
| Length L (mm): | 16 |
| Material: | stainless steel |
| Surface finish: | without modification |
| Width A (mm): | 2,5 |
| Width B (mm): | 4 |
| Width C (mm): | 3,6 |
