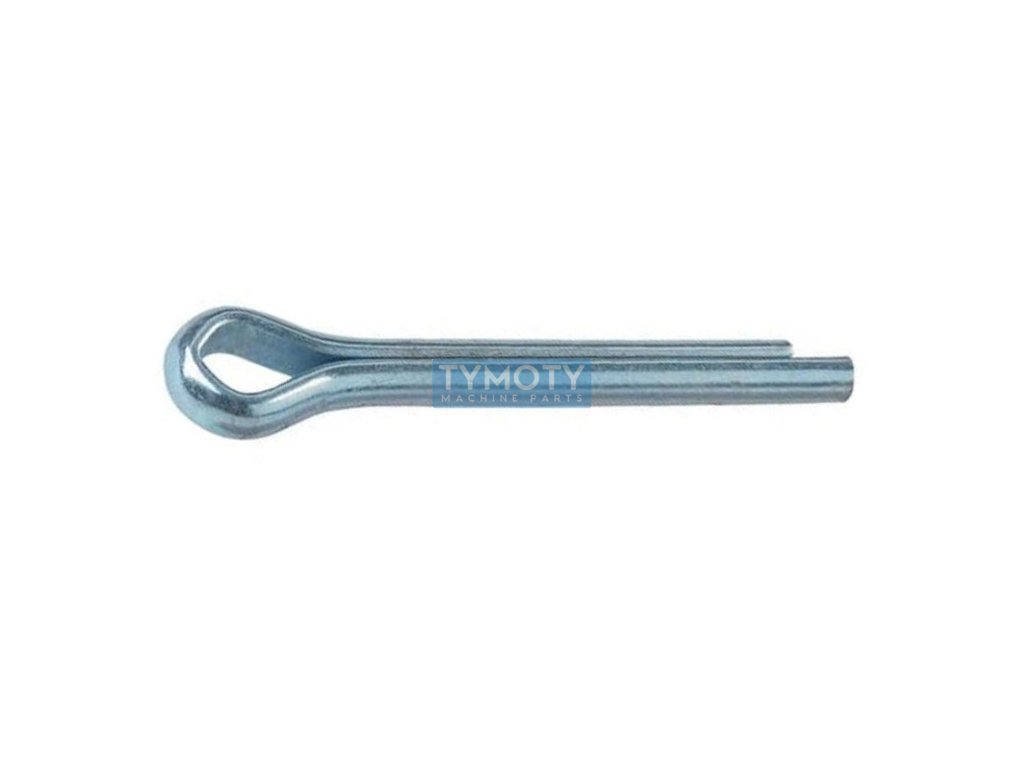

Cotter pin DIN 94-2.5x63 galvanized

Product detailed description

The split pin according to DIN 94 and ISO 1234 is made of steel with a white zinc coating, which ensures increased resistance to corrosion and mechanical wear. This component is designed to secure nuts, bolts and various connections against spontaneous loosening, which is crucial for maintaining the integrity and safety of mechanical assemblies. The split pin is designed for easy assembly and disassembly, which allows it to be reused without loss of functionality.

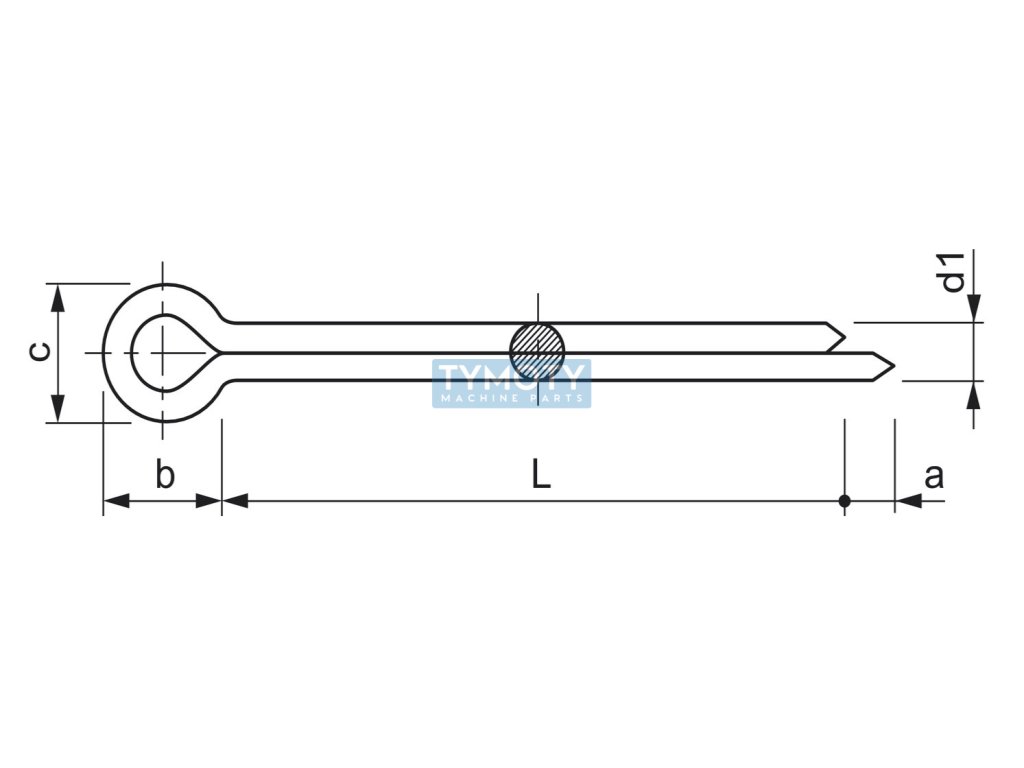

The design dimensions of this split pin are as follows: diameter d1 is 2.3 mm, total length L is 63 mm, width C is 4.6 mm, width b is 5 mm and width a is 2.5 mm. These dimensions are optimized for a wide range of applications, while ensuring reliable fixation in various types of holes and connections.

The split pin falls into the category of self-locking elements, which means that when properly installed, it can effectively withstand dynamic loads and vibrations, minimizing the risk of loosening connections. It is ideal for use in the automotive industry, mechanical engineering and other areas where it is necessary to ensure reliable and durable connection of components.
