Cotter pin DIN 94-2.5x28 galvanized

Product detailed description

The split pin according to DIN 94 and ISO 1234 is made of galvanized steel, which guarantees its high corrosion resistance and long service life even in demanding conditions. This component is designed to secure nuts, bolts and various connections against unwanted loosening, thereby contributing to increasing the safety and reliability of mechanical assemblies.

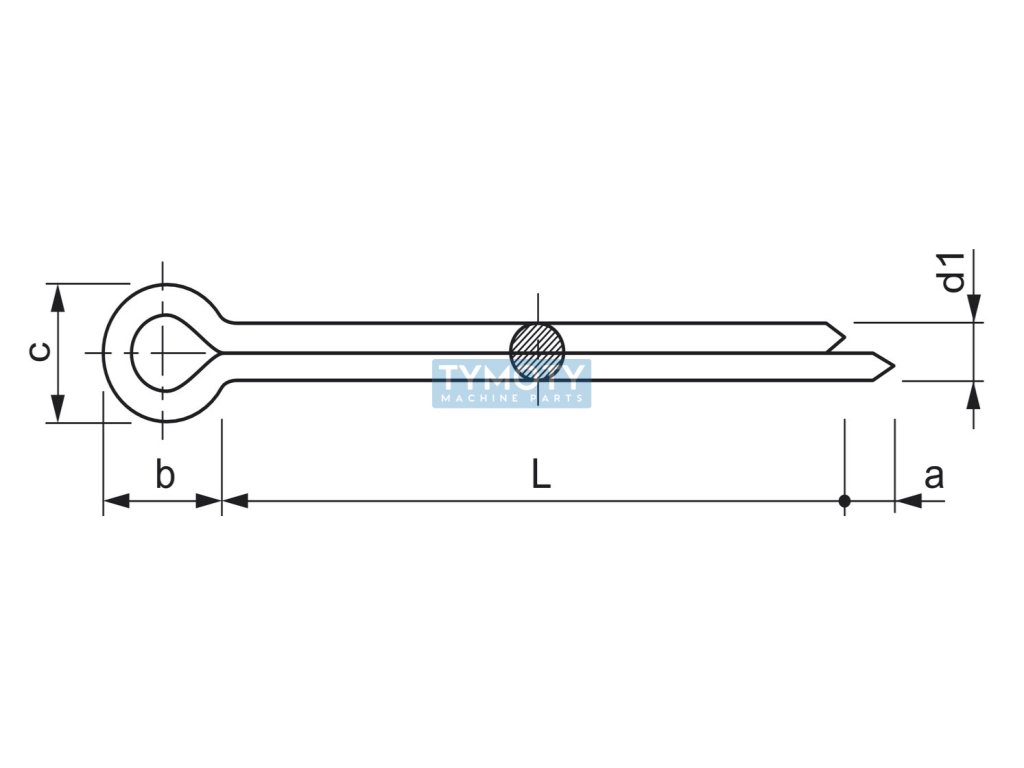

The split pin has a diameter of 2.3 mm and a total length of 28 mm, while the head width is 5 mm. The shoulder width is 2.5 mm, which allows it to be easily inserted into holes with the corresponding diameter. The width C, which is 4.6 mm, provides sufficient stability at the fastening point. The surface treatment with white zinc ensures protection against corrosion, which is key for applications in environments with higher humidity or chemical aggressiveness.

The split pin is easy to assemble and disassemble, which allows for quick and effective securing of connections without the need for special tools. This type of fastener is widely used in mechanical engineering, the automotive industry and other industries where it is necessary to ensure reliable connection of components. The cotter pin meets the requirements of the ČSN 21781 standard, which guarantees its compatibility and standardization within the framework of international technical standards.
