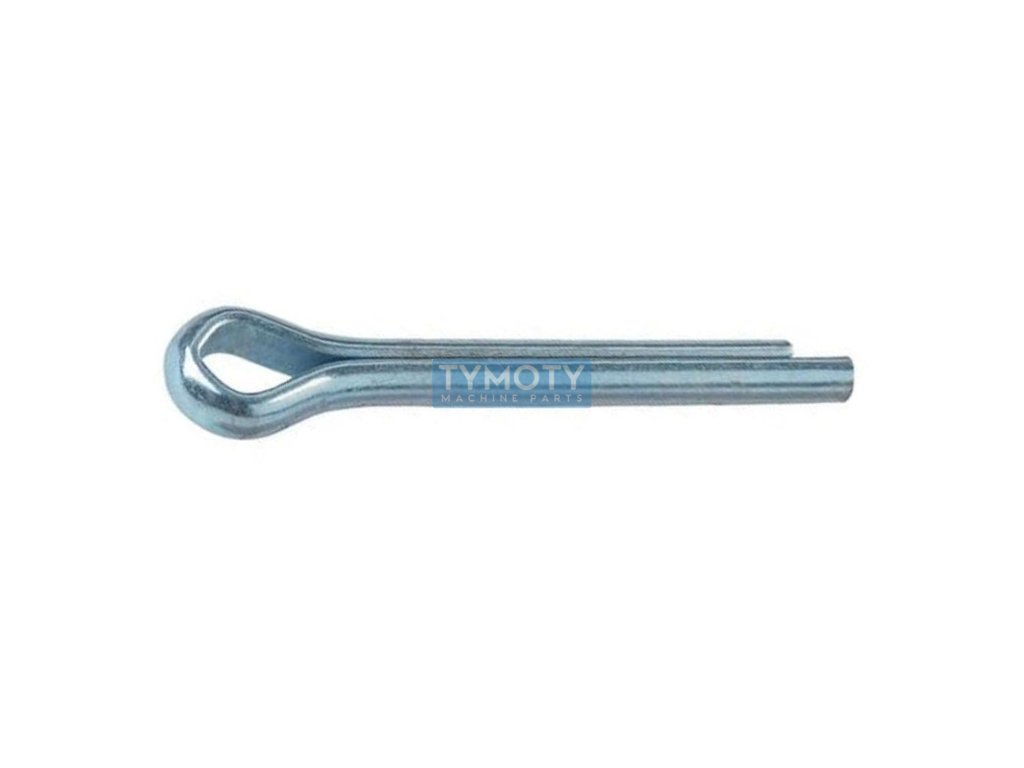

Cotter pin DIN 94-10x160 galvanized
Code: 863391
Product detailed description
The DIN 94-10x160 split pin is a structural element designed to secure nuts, bolts and joints against unwanted loosening. This component is made of steel, which is surface-treated with white zinc, which increases its corrosion resistance and extends its service life in harsh operating conditions.The split pin has a diameter of 9.5 mm and a total length of 160 mm, which allows it to be used in a wide range of applications where joints need to be secured. The width of the component is 19 mm, the width b is 20 mm and the width a is 6.3 mm, which provides sufficient stability and strength during assembly.
This split pin meets the standards DIN 94 and ISO 1234, as well as ČSN 21781, which guarantees its compatibility and reliability within the framework of international standards. Thanks to its design, it allows easy assembly and disassembly, which is advantageous in the maintenance and repair of mechanical systems.
The use of the split pin is suitable in various industrial sectors where it is necessary to secure connections against loosening, while its design features guarantee a high level of safety and reliability.
Additional parameters
| Category: | Fasteners > pins > DIN 94 graded steel |
|---|---|
| Weight: | 0.111 kg |
| EAN: | 4043952028858 |
| CSN standard: | 21781 |

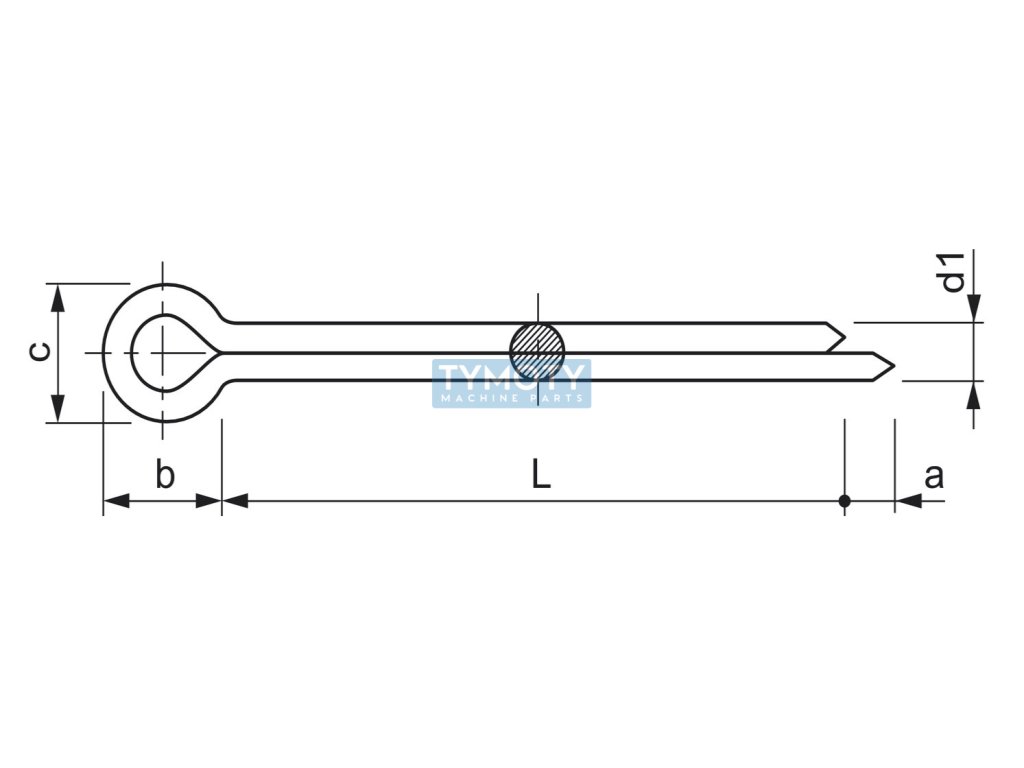

| Diameter d1 (mm): | 9,5 |
| DIN standard: | 94 |
| ISO standard: | 1234 |
| Length L (mm): | 160 |
| Material: | steel |
| Surface finish: | zinc white |
| Width A (mm): | 6,3 |
| Width B (mm): | 20 |
| Width C (mm): | 19 |
