Cotter pin DIN 94-1,6x36 galvanized

Product detailed description

The split pin according to DIN 94 and ISO 1234 is made of galvanized steel, which guarantees its corrosion resistance and long service life in various operating conditions. This component is designed to secure nuts, bolts and joints against unwanted loosening, thereby increasing the safety and reliability of mechanical assemblies.

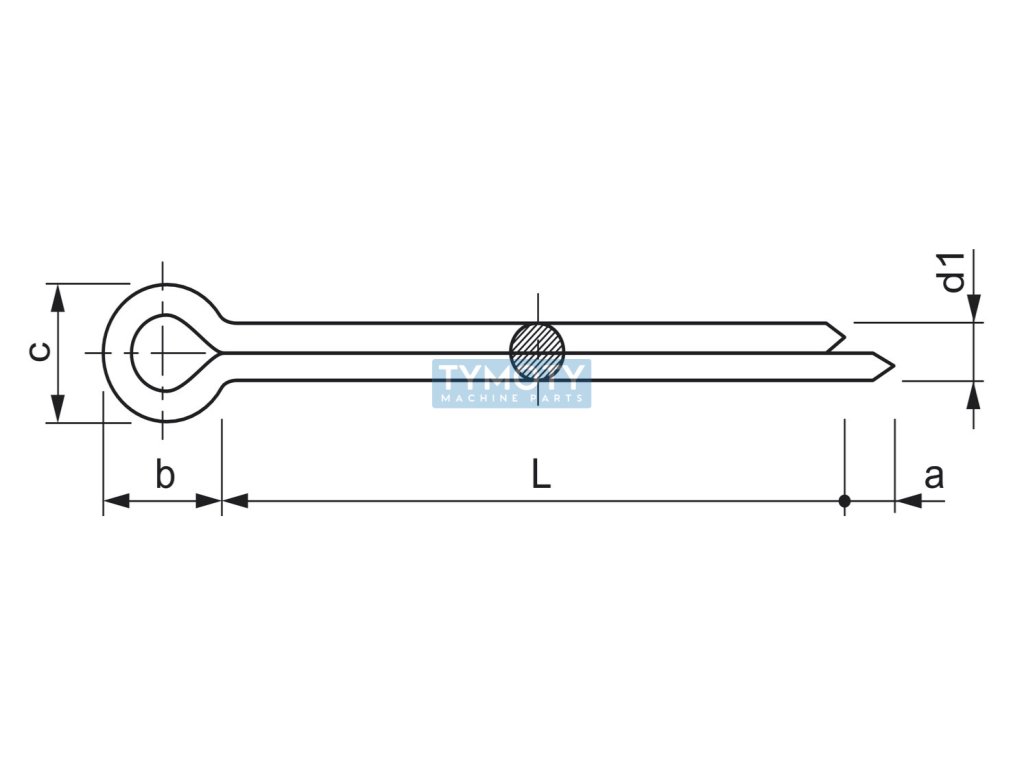

The split pin has a diameter d1 of 1.4 mm and a total length of 36 mm, which makes it suitable for use in applications where precision and reliable fastening are required. The width C is 2.8 mm, the width b is 3.2 mm and the width a is 2.5 mm, which are critical dimensions for correct seating and function in the mechanism. The white zinc coating provides additional corrosion protection, which is especially important in environments with high humidity or chemical exposure.

The split pin is easy to assemble and disassemble, which allows for quick and efficient maintenance or replacement of components in the system. This type of cotter pin is often used in engineering, automotive and other areas where it is necessary to ensure a reliable mechanical connection. Compliance with DIN 94, ISO 1234 and ČSN 21781 standards guarantees compatibility and product quality.
