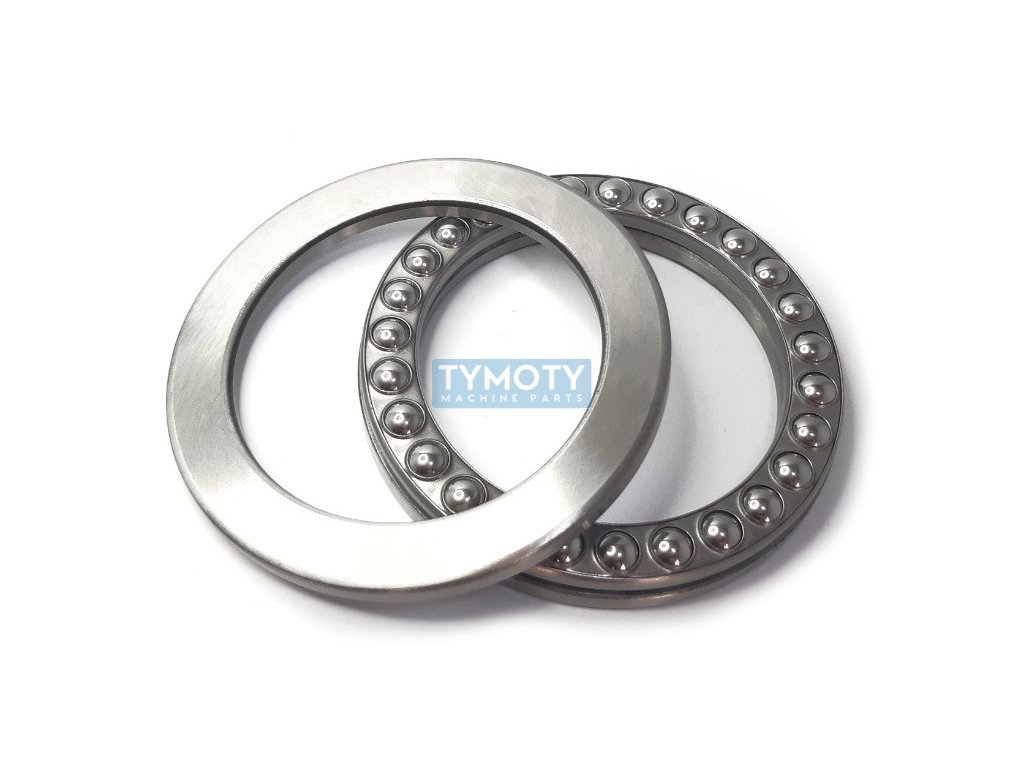

CODEX 51117 thrust ball bearing

Product detailed description

The CODEX 51117 thrust ball bearing is designed for applications where axial loads need to be transmitted in one direction. This type of bearing is ideal for use in mechanisms where axial force support is required, while radial loads are absent or negligible.

The bearing has an inner diameter (d) of 85 mm, an outer diameter (D) of 110 mm and a width (B) of 19 mm. These dimensions are standardized and allow easy integration into various mechanical assemblies. The hole profile is cylindrical, which ensures easy mounting on the shaft.

The manufacturer of this bearing is the CODEX company from Slovenia, which is known for producing quality bearings for a wide range of industrial applications. The bearing is designated with the code 51117, which is the standard designation for this type of thrust ball bearing according to international standards.

Thrust ball bearings, such as the 51117 model, are designed to handle high axial loads at relatively low speeds. Their design allows for efficient load distribution across the balls, minimizing friction and extending bearing life. These bearings are often used in applications such as rotary tables, gearboxes and other mechanisms where axial forces need to be transmitted with high precision and reliability.
