CN SS 6304-2RS stainless steel ball bearing
Code: 314706
Product detailed description
FK bearing SS 6304 2RS - stainless steel non-separable single-row radial ball bearing with a steel cage guided by balls with double-sided friction seals and normal radial clearance. The seals are made of oil-resistant and abrasion-resistant rubber, which is vulcanized to a metal reinforcement and are pressed into grooves in the outer ring. The sealing blades rest on the edges of the grooves on the inner ring. The bearing is filled with high-quality lubricant with a temperature range from -40 ° C to +100 ° C for the entire service life of the bearing.The stainless steel bearing SS 6304 2RS FK is marked W 6304-2RS1 by the manufacturer SKF.
Additional parameters
| Category: | Bearings > ball > single row 63xx > 6304 > stainless steel |
|---|---|
| Weight: | 0.144 kg |
| Cage: | stainless steel |
| Clearance: | normal |

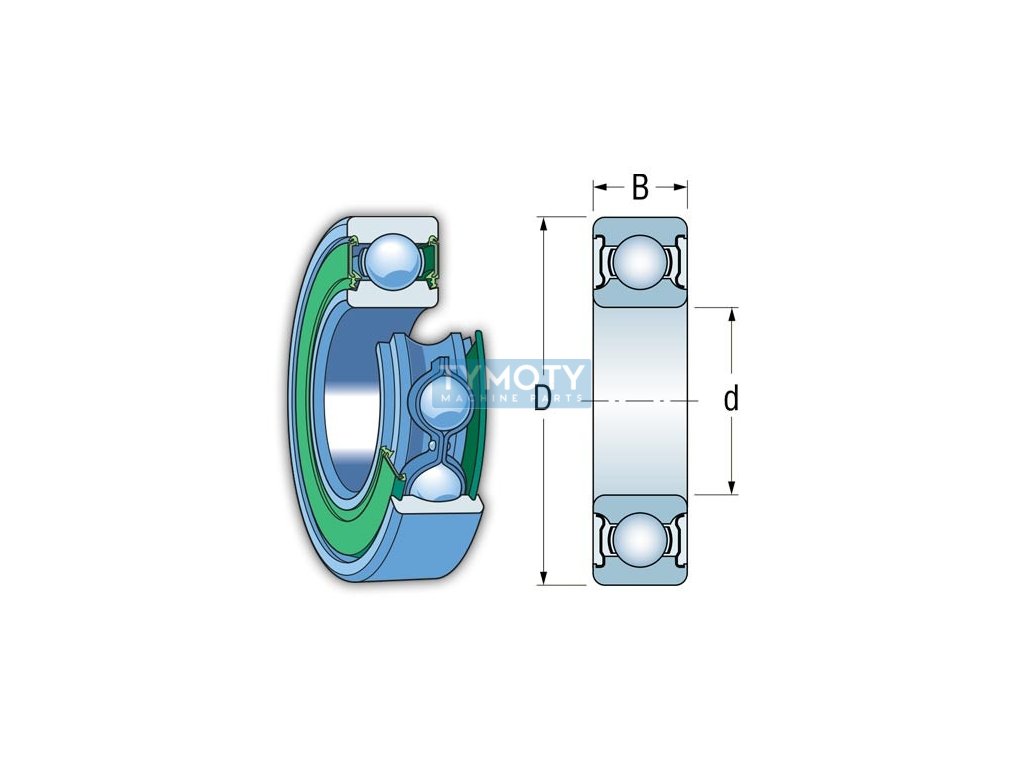

| Diameter D (mm): | 20, 52 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | CN |
| Material: | stainless steel |
| Seal: | double-sided - rubber |
| Width B (mm): | 15 |
| Značení: | SS 6304-2RS |
| Typ: | nerezové kuličkové ložisko |
