CN 686-2RS (628/6-2RS) deep groove ball bearing
Code: 651491
Product detailed description

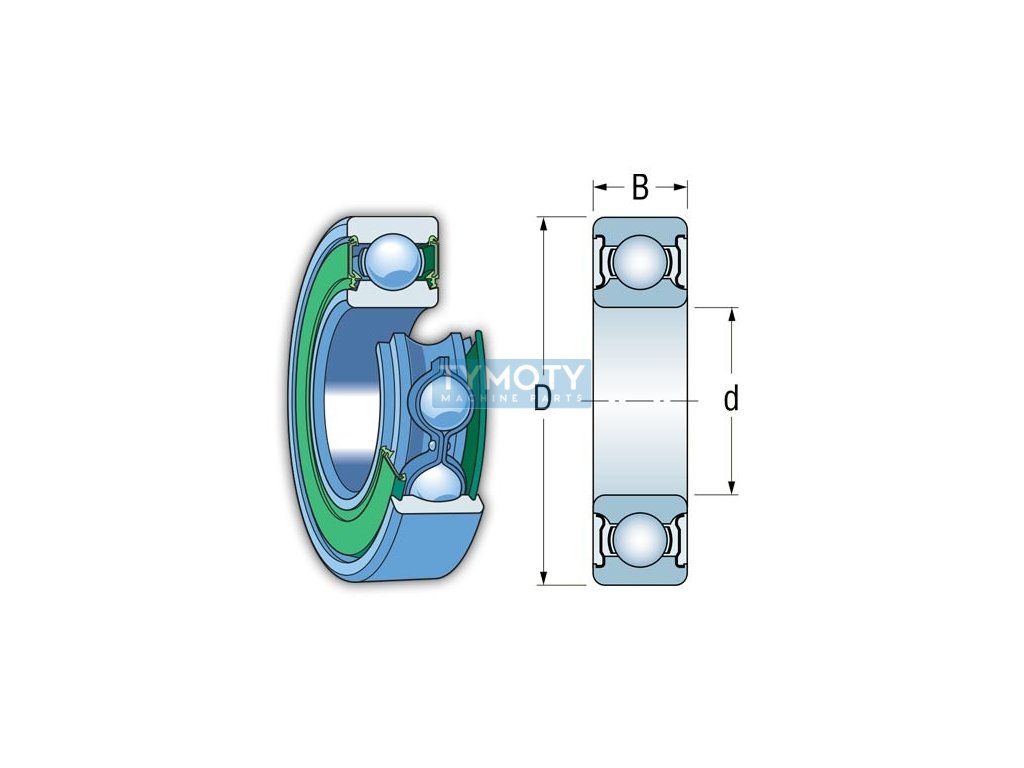

CN 686-2RS (628/6-2RS) is a deep groove ball bearing designed for a wide range of industrial applications. This bearing has an inner diameter of 6 mm, an outer diameter of 13 mm and a width of 5 mm, making it ideal for compact mechanisms where dimensions are critical. The bearing is made of high-quality steel, which guarantees high strength and wear resistance.The bearing is equipped with a double-sided rubber seal, which provides effective protection against dust and dirt, thereby extending the life of the bearing and reducing the need for maintenance. The steel cage ensures stability and precise guidance of the balls during operation. The bearing has normal clearance, which means that it is suitable for applications with normal operating conditions where special clearance adjustments are not required.
The hole profile is cylindrical, which allows for easy installation on the shaft. The bearing is marked as 686-2RS (628/6-2RS), while the manufacturer's brand is CN. Due to its technical characteristics and favorable price, this bearing is often used in various industries, including mechanical engineering, electrical engineering and the automotive industry.
Additional parameters
| Category: | Bearings > ball > miniature d=0.6 to 9mm > d = 6 mm > 628/6-2Z, 686-2Z (D=13 B=5) |
|---|---|
| Weight: | 0.003 kg |
| Cage: | steel |
| Clearance: | normal |
| Diameter D (mm): | 6, 13 |
| Hole profile: | cylindrical |
| Manufacturer's brand: | CN |
| Material: | steel |
| Seal: | double-sided - rubber |
| Width B (mm): | 5 |
| Značení: | 686-2RS |
| Typ: | kuličkové ložisko |
