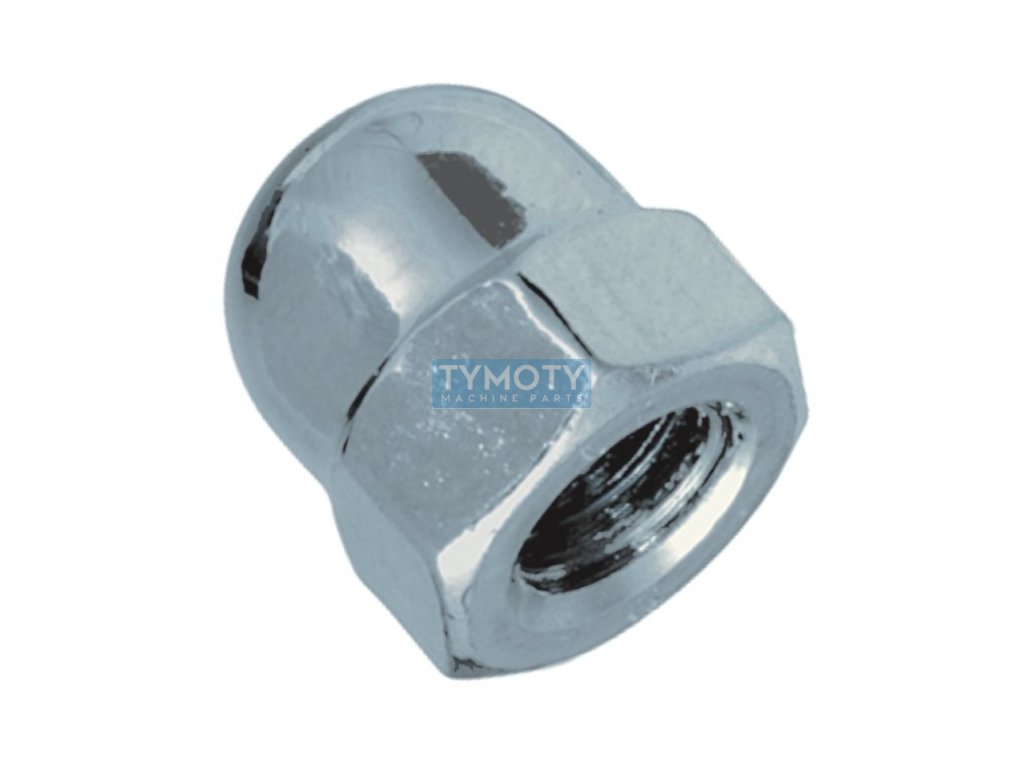

Cap nut DIN 1587 M24 |06| zinc

Product detailed description

The DIN 1587 M24 cap nut is a technical component intended for use in various mechanical and structural applications where it is necessary to ensure the protection of threaded connections. This nut is made of steel with a strength class of 6, which guarantees sufficient mechanical resistance for common applications. The zinc coating provides protection against corrosion, thus extending the life of the component even in more demanding conditions.

The nut has a metric M24 thread with a pitch of 3.00 mm, which is a standard size for this type of fastener. The total height of the nut is 42 mm, while the height of the hexagonal part is 19 mm. The width between the surfaces (s) is 36 mm and the width between the diagonals (e) is 39.55 mm. The diameter d1, which represents the outer diameter of the cap, is 34 mm.

This type of nut is hexagonal and closed, which means that it has a covered head that serves as a protective and decorative element. The cap design protects the end of the screw from mechanical damage and dirt, thus increasing the safety and reliability of the connection. The nut is suitable for use in situations where it is necessary to prevent the thread from being exposed to external influences, such as dust, moisture or chemicals.

The DIN 1587 standard guarantees that the nut meets all requirements for dimensional accuracy and material quality, which is important for its proper function in fastening applications. This nut is ideal for use in mechanical engineering, construction and other industries where reliable protection of threaded connections is required.
