Bucket screw with nut and extension DIN 15237 M10x35 galvanized

Product detailed description

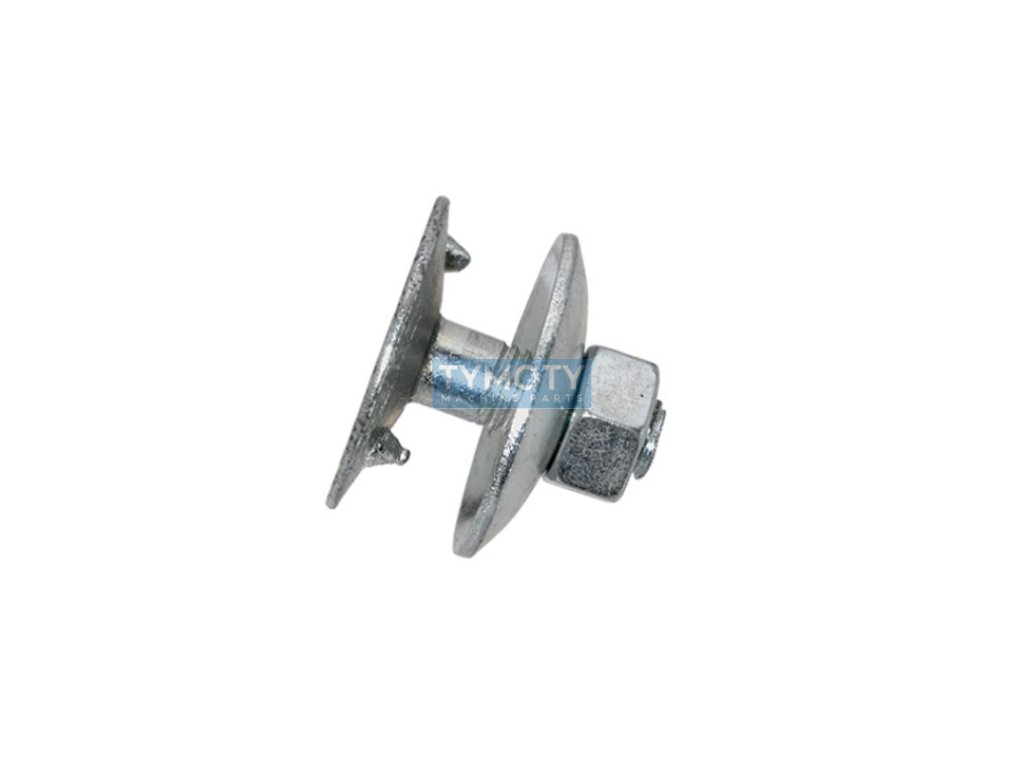

The cap screw with nut and washer according to DIN 15237, with dimensions M10x35, is made of galvanized steel grade 3.6. This type of screw is characterized by a smooth countersunk head with two noses, which allows for reliable fastening in applications where it is necessary to minimize the protrusion of the head above the surface. The screw is supplied with a hexagonal nut and a concave washer, which ensure a strong and stable connection.

The DIN 15237 standard, equivalent to ČSN 021329, defines the exact dimensions and mechanical properties of this type of fastener, thus ensuring its compatibility and reliability in various industrial applications. Steel grade 3.6 indicates that the material has a minimum yield strength of 180 MPa and a minimum tensile strength of 300 MPa, which is suitable for less demanding applications where high mechanical properties are not required.

Galvanization provides increased corrosion resistance, thus extending the life of the bolt in environments with higher humidity or in outdoor conditions. This type of bolt is ideal for use in conveyor systems where reliable attachment of buckets to belts or chains is required, while the head design allows for easy installation and removal.
