Axial seal VRM02 85x107x5.5/93 NBR
Code: 279859
Product detailed description

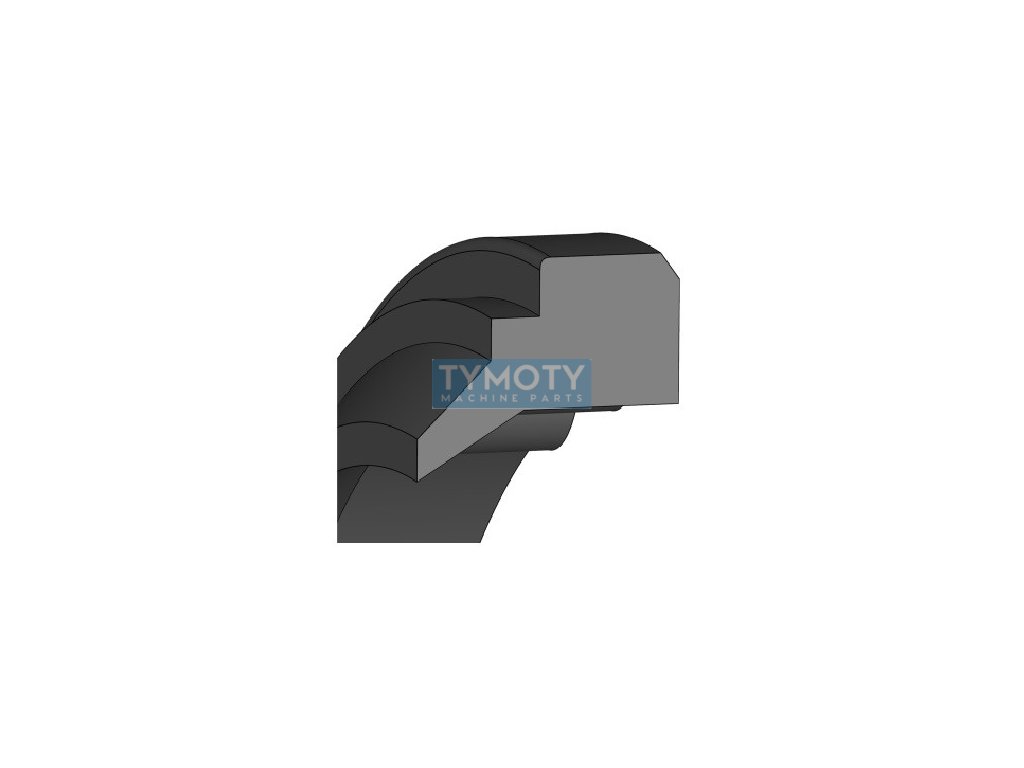

VRM02 NBR is an axial seal consisting of a metal ring and a rubber sealing lip made of NBR70 rubber. In combination with a rotary seal as protection against the ingress of impurities, it can be used in temperatures from -40°C to +100°C up to a maximum peripheral speed of 12 m/s.Additional parameters
| Category: | Seal > axial seal VRM > type 2 NBR |
|---|---|
| Diameter D (mm): | 85, 107 |
| Diameter D2 (mm): | 93 |
| Hardness: | 70 |
| Height H (mm): | 5,5 |
| Manufacturer's brand: | Dichtomatik |
| Material: | steel-NBR |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -40 |
