Axial seal VRM02 50x72x5.5/58 NBR

Code: 279852

Not rated

9,33 € –18 %

9,33 € –18 % 7,59 € / pcs 9,18 € incl. VAT

In stock ()

Delivery to: 06/08/2025 Delivery offer

d=50 mm, D=72 mm, H=5.5 mm – axial seal VRM02 – NBR70 – manufacturer Dichtomatik – suitable for -40 °C to +100 °C, max. speed 12 m/s, protection against dirt.

Detailed information

Product detailed description

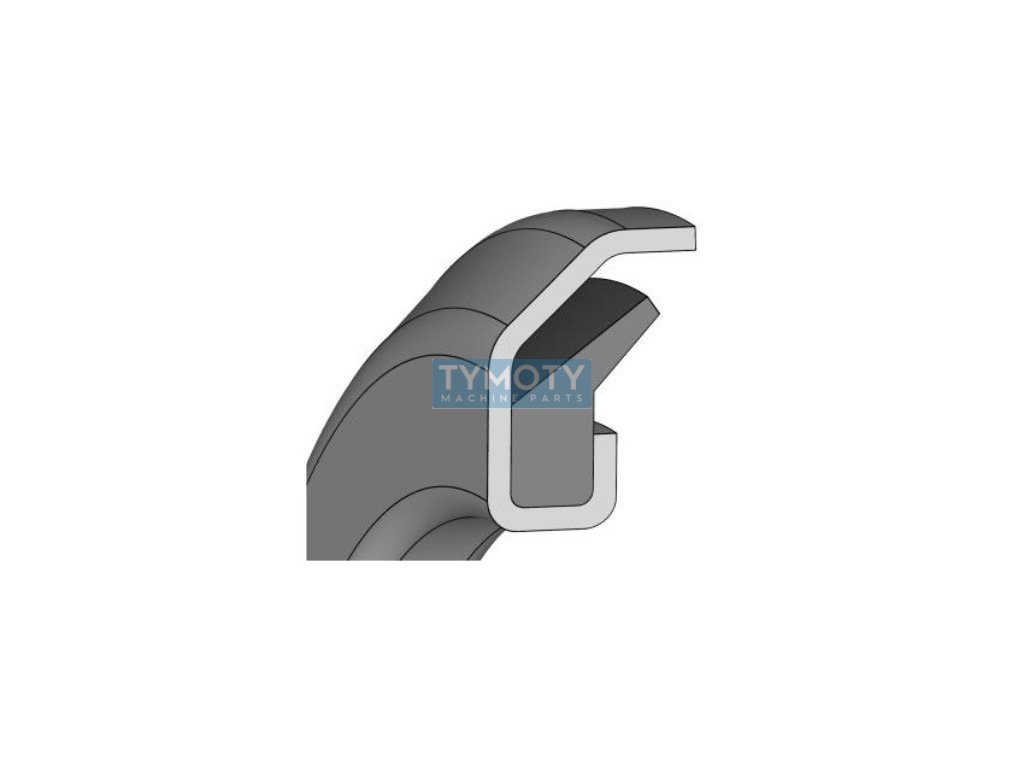

VRM02 NBR is an axial seal consisting of a metal ring and a rubber sealing lip made of NBR70 rubber. The metal ring serves as a support for the rubber element with the sealing lip and extends beyond the sealing lip in the axial direction. This protects it from damage and at the same time creates a sealing labyrinth. The seal is mainly used in combination with a rotary seal as protection against the ingress of dirt and is applicable to temperatures from -40 °C to +100 °C up to a maximum peripheral speed of 12 m/s.

Additional parameters

Category:	Seal > axial seal VRM > type 2 NBR
Diameter D (mm):	72, 50
Diameter D2 (mm):	58
Hardness:	70
Height H (mm):	5,5
Manufacturer's brand:	Dichtomatik
Material:	steel-NBR
Maximum temperature °C:	+100
Minimum temperature °C:	-40
