Axial seal VRM02 15x32x4/21 NBR
Code: 279844
Product detailed description

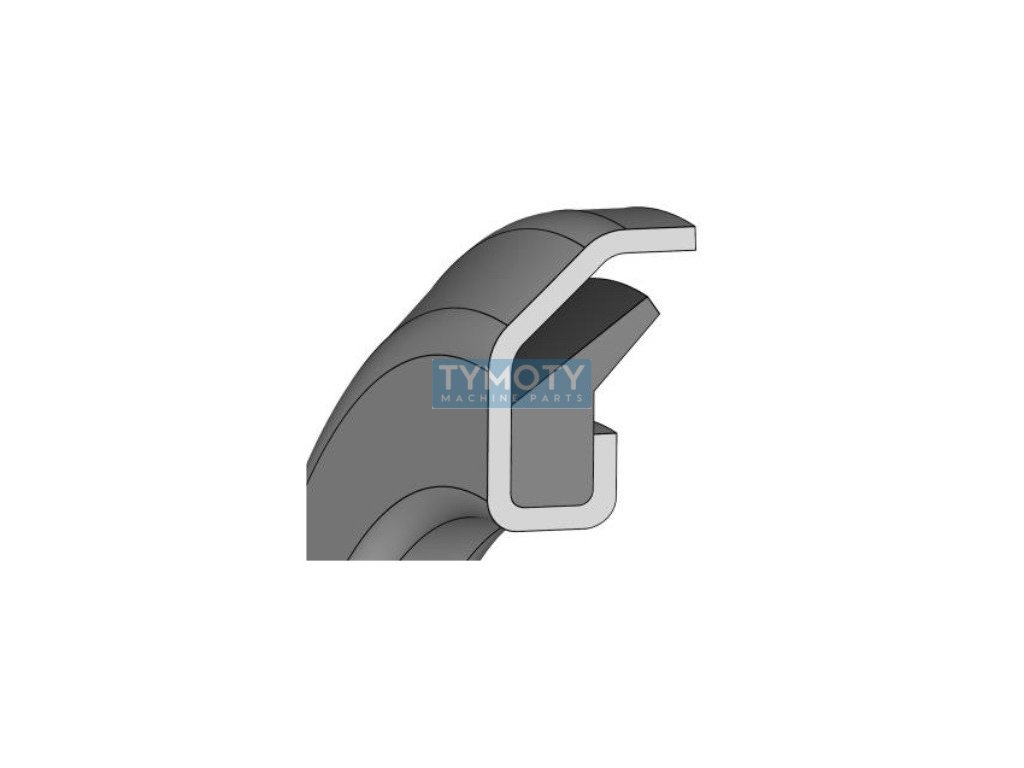

VRM02 NBR is an axial seal consisting of a metal ring and a rubber sealing lip made of NBR70 rubber. The metal ring serves as a support for the rubber element with the sealing lip and extends beyond the sealing lip in the axial direction. This protects it from damage and at the same time creates a sealing labyrinth. The seal is mainly used in combination with a rotary seal as protection against the ingress of dirt and is applicable to temperatures from -40 °C to +100 °C up to a maximum peripheral speed of 12 m/s.Additional parameters
| Category: | Seal > axial seal VRM > type 2 NBR |
|---|---|
| Diameter D (mm): | 15, 32 |
| Diameter D2 (mm): | 21 |
| Hardness: | 70 |
| Height H (mm): | 4 |
| Manufacturer's brand: | Dichtomatik |
| Material: | steel-NBR |
| Maximum temperature °C: | +100 |
| Minimum temperature °C: | -40 |
