Allen screw with centering hole DIN 6912 M5x16-8.8
Code: 824516
Product detailed description

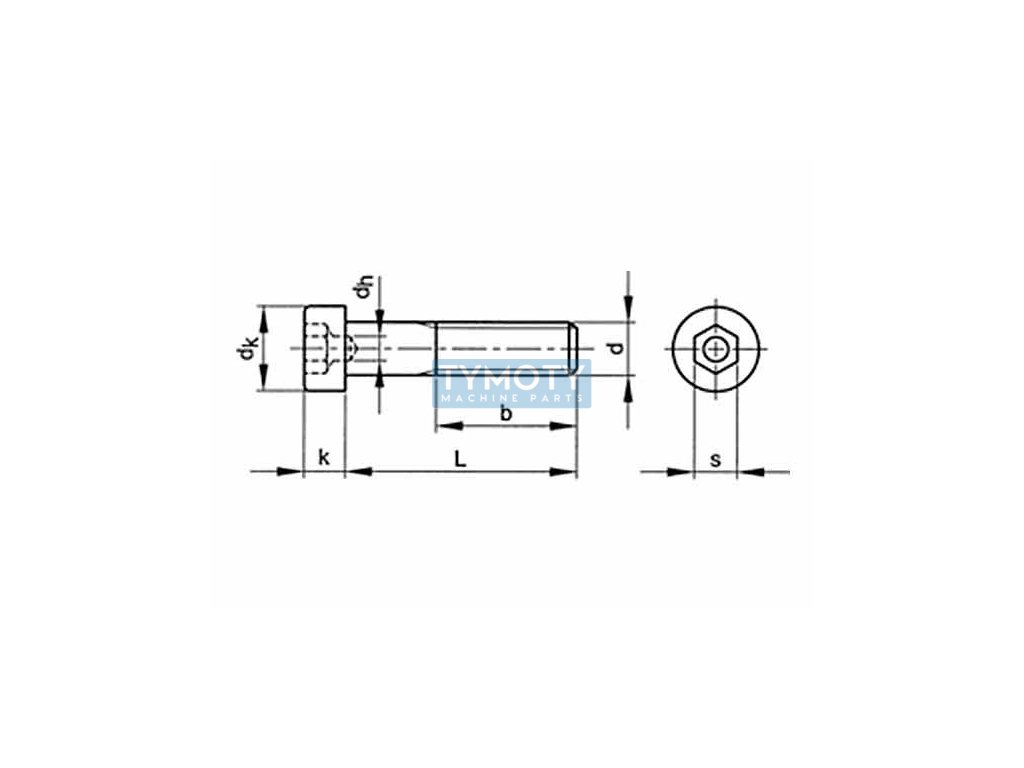

The DIN 6912 Allen screw with centering hole is designed for applications where space is limited and precise centering is required. This component has a low cylindrical head with an internal hexagon, which allows for efficient torque transmission during assembly and disassembly using an Allen key.The screw has a metric thread with a diameter of M5 and a pitch of 0.80 mm. The total thread length is 16 mm, which corresponds to the full length of the screw. The head diameter is 8.5 mm and its height is 3.5 mm, while the B1 width is 4 mm. The centering hole has a diameter of 2.5 mm, which allows for precise centering during assembly.
The screw material is steel of strength class 8.8, which means that it has a yield strength of 640 MPa and a tensile strength of 800 MPa. The screw is not surface-treated, which is suitable for applications where additional corrosion protection is not required.
This screw is ideal for connections where it is necessary to minimize the head height while ensuring accurate centering of components. It is suitable for use in mechanical engineering, the automotive industry and other technical areas where such requirements are common.
Additional parameters
| Category: | Fasteners > cap screws > Allen key, center hole DIN 6912 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.003 kg |
| EAN: | 4043952485163 |
| Diameter D (mm): | M5, 8,5 |
| Diameter D2 (mm): | 2,5 |
| DIN standard: | 6912 |
| Fortress class: | 8,8 |
| Head shape: | cylindrical |
| Height H (mm): | 3,5 |
| Height H2 (mm): | hex |
| Material: | steel |
| Pitch: | 0,80 |
| Surface finish: | without modification |
| Thread length b (mm): | 16 |
| Thread type: | metric |
| Width B1 (mm): | 4 |
