Allen screw with centering hole DIN 6912 M12x25-8.8 galvanized
Code: 824835
Product detailed description

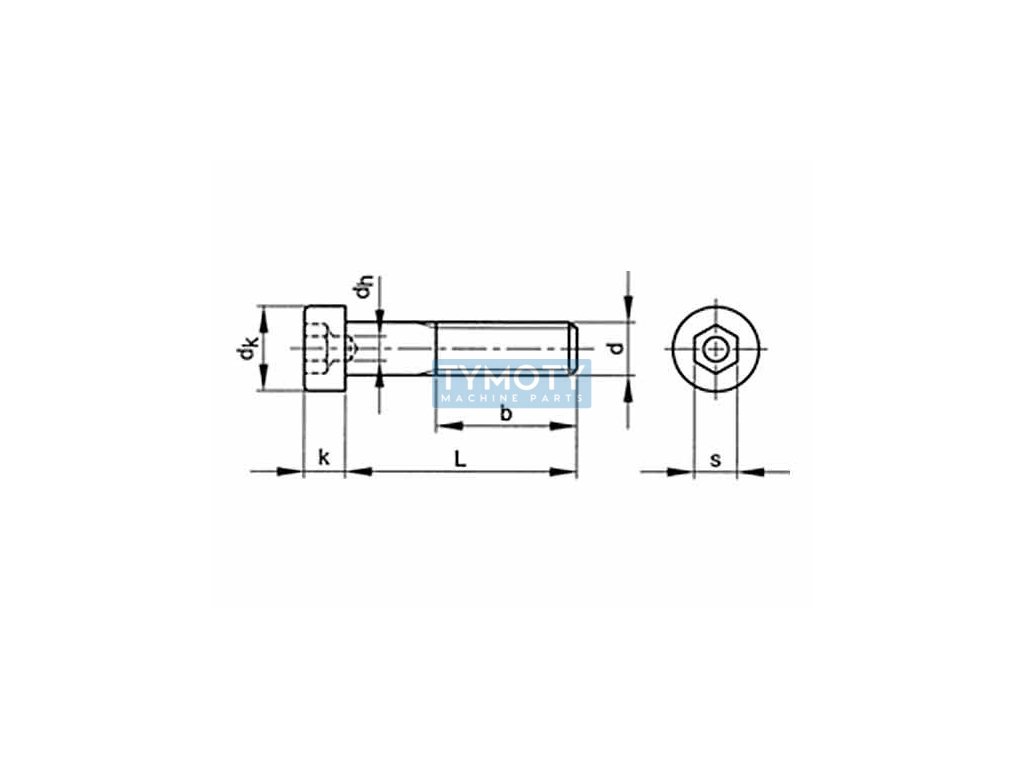

The Allen screw with a centering hole according to DIN 6912 is made of galvanized steel of strength class 8.8. This screw is characterized by a low cylindrical head with an internal hexagon, which allows it to be used in joints with limited space and at the same time provides the possibility of precise centering thanks to the centering hole.The screw has a metric thread with a diameter of M12 and a pitch of 1.75 mm. The total length of the thread is 25 mm. The diameter of the screw head is 18 mm, while its height is 7.5 mm. The diameter of the centering hole is 6 mm and the width for the internal hexagon is 10 mm.
The surface treatment of the screw is white zinc-plated, which provides protection against corrosion and increases its resistance in harsh conditions. The screw is suitable for applications where high strength and precision are required, while its low head profile allows use in limited spaces. Screws of this specification are often used in engineering and industrial applications where reliable and precise fastening of components is required.
Additional parameters
| Category: | Fasteners > cap screws > Allen key, center hole DIN 6912 > galvanized steel 8.8 |
|---|---|
| Weight: | 0.029 kg |
| EAN: | 4043952488423 |
| Diameter D (mm): | M12, 18 |
| Diameter D2 (mm): | 6 |
| DIN standard: | 6912 |
| Fortress class: | 8,8 |
| Head shape: | cylindrical |
| Height H (mm): | 7,5 |
| Height H2 (mm): | hex |
| Material: | steel |
| Pitch: | 1,75 |
| Surface finish: | zinc white |
| Thread length b (mm): | 25 |
| Thread type: | metric |
| Width B1 (mm): | 10 |
