Allen screw with centering hole DIN 6912 M12x120-8.8
Code: 824614
Product detailed description

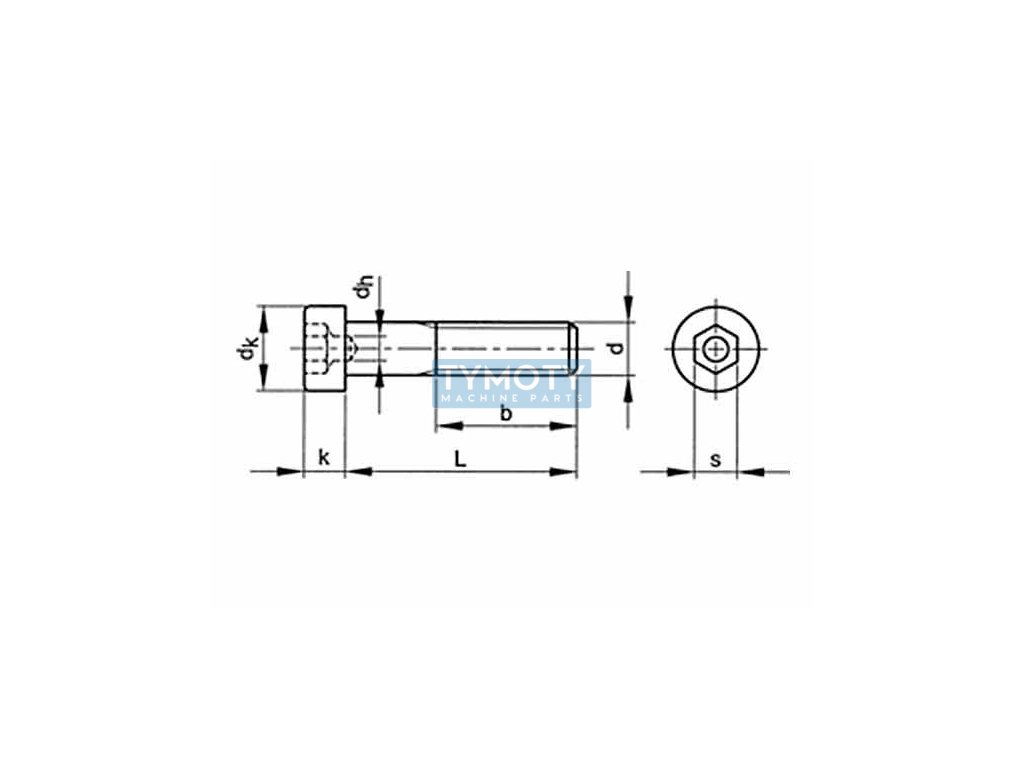

The DIN 6912 Allen screw with centering hole is specifically designed for applications where space is limited and precise centering of the joint is required. This screw has a low cylindrical head with an internal hexagon, which allows effective use in places with limited access for conventional tools.The screw has a metric thread with a diameter of M12 and a length of 120 mm, with a thread length of 30 mm. The thread pitch is 1.75 mm, which is standard for this type of metric thread. The screw head has a diameter of 18 mm and a height of 7.5 mm, with a B1 width of 10 mm. The diameter of the centering hole is 6 mm, which allows for precise centering during assembly.
The screw material is steel of strength class 8.8, which means that it has a yield strength of 640 MPa and a tensile strength of 800 MPa. The screw is not surface-treated, which must be taken into account when used in corrosive environments. This type of screw is suitable for applications where high strength and precision are required, such as in mechanical engineering or structures with high demands on reliability and precision of joints.
Additional parameters
| Category: | Fasteners > cap screws > Allen key, center hole DIN 6912 > steel 8.8 without treatment |
|---|---|
| Weight: | 0.111 kg |
| EAN: | 4043952486115 |
| Diameter D (mm): | M12, 18 |
| Diameter D2 (mm): | 6 |
| DIN standard: | 6912 |
| Fortress class: | 8,8 |
| Head shape: | cylindrical |
| Height H (mm): | 7,5 |
| Height H2 (mm): | hex |
| Material: | steel |
| Pitch: | 1,75 |
| Surface finish: | without modification |
| Thread length b (mm): | 30 |
| Thread type: | metric |
| Width B1 (mm): | 10 |
